One traditional technique for the calculation of the frequency dependent total series impedance for an interconnect on an MCM is Reuhli's and Weeks' filament method [4,5]. A much more efficient application of this technique can be implemented using the EII approach. Using the EII, one has to solve only the exterior problem, and so the filament method can be applied to surface "ribbons" instead of volume filaments [13]. This leads to a substantial reduction in problem size, with a corresponding increase in computational efficiency.

The volume filament method divides the conductor into rectangular filaments
that fill the entire cross section of the conductor. The size of the problem
can be reduced by considering only the surface of the conductor. Instead
of using "volume filaments" we use "surface ribbons,"
each assigned an impedance based on the EII appropriate for that location
on the conductor surface. The reduction in the size is thus from N^{2}
to 4N, where N represents the number of segments per side used. As a test
case, we have calculated the series impedance of a two conductor transmission
line using Weeks' filament method and by the modified filament method for
surface impedance approaches discussed above. The copper conductors are
coplanar, 10 um thick and 10 um wide, separated by 10 um. For the volume
filament method each conductor is divided into a 20x20 mesh, resulting in
800x800 matrix size. For the surface ribbon method the same mesh is used,
but this time only at the surface. The size of the matrix for the latter
case is 160x160. Figure 5a and 5b compares the series
impedance per unit length for the coplanar bars found with the different
models. For comparison, the conformal mapping result from [8] is also shown.
All techniques are in good agreement for the series resistance of the interconnect.
The main discrepancies are in the low frequency inductance; the conformal
mapping being the highest. Both the volume filament and surface ribbon calculations
are in excellent agreement over the full frequency range.

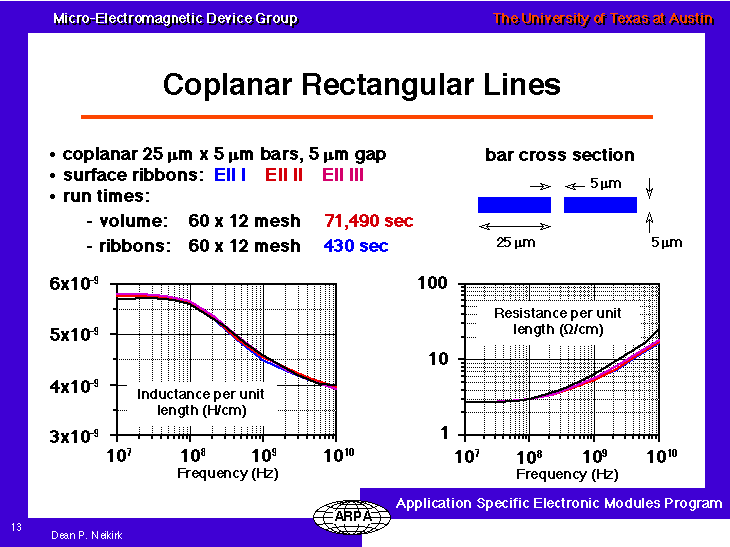

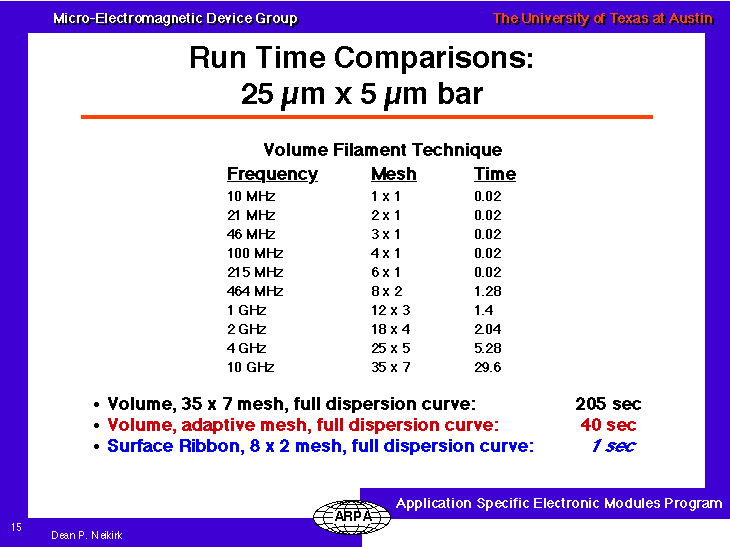

The main advantage of the surface filament approach is seen when CPU times are compared. For the ten frequency point calculation shown in Fig. 5, the volume filament calculation required 3 hours on a Sparc 10 workstation.; the same curve required only 100 sec to calculate using the surface ribbons (including the calculation of the surface impedance). The conformal mapping calculation required only 48 sec (including both surface impedance and map coefficient calculations), although at the cost of loss of accuracy in inductance at low frequency. Another comparison for coplanar, thick strips is shown in Fig. 6: here the ribbon technqiue is about 200 times faster than the conventional volume approach. Table 1 shows a comparison of run-times for volume and ribbon calculations of the self-inductance of a rectangular metal bar. It should also be noted that most techniques designed to speed up volume filament calculations can also be applied to the surface ribbon approach. To summarize, a major contribution of this work has been the development of a new effective internal impedance model, that when used in combination with a surface ribbon calculation, can accurately find the series impedance per unit length of multi-wire lossy interconnects using significantly less CPU time.
